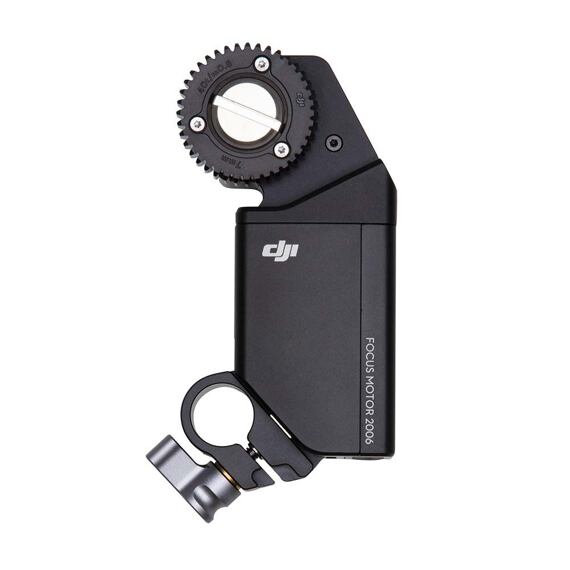

DJI Ronin-S - Focus Motor

Ronin-S - Focus Motor

Ronin-S - Focus Motor sa používa v kombinácii Ronin-S Focus Wheel na ovládanie ostrenia, clony alebo zoomu.

Tip: Ronin-S Focus Wheel je už súčasťou balenia DJI Ronin-S

Balenie obsahuje:
1x  Focus Motor
1x  Rod Mount
2x  15 mm Rod
4x  Screw
2x  Focus Gear Strip
1x  Power Cable

Parametre:
Weight: 198 g (power cable included)
Dimensions: 110 x 53 x 30 mm
Max. Torque: 0.5 Nm
Max. Speed: 210 RPM
Operating Current: Free current: 25 mA (12 V); Stall current: 0.5 A (12 V)
Operating Voltage: 6-17 V
Noise: 25 dB
Rod Clamp Inner Diameter: 15 mm
Gear: No. of teeth: 40; Module: 0.8
Operating Temperature: -20 to 55°C

No. of Teeth: 151
Module: 0.8
Diameter: 30 to 110 mm
Length: 377 mm

Kompatibilita:
Ronin-S
